| 产品特性激光 | 是否进口否 |
| 产地东莞 | 品牌迈创 |
| 型号MT-WA | 用途焊接 |
| 电流交流 | 作用对象金属 |
| 作用原理脉冲 | 订货号MT-WA |
| 货号MT-WA | 产品别名激光焊接机 |
| 焦斑直径0.1-2mm | 激光焊接深度0.1-2mm |
| 激光器上下行程100 | 连击时激光焊接频率1-40Hz |
| 最大激光功率400w | 最大平均功率400w |
| 是否跨境货源否 |
展开

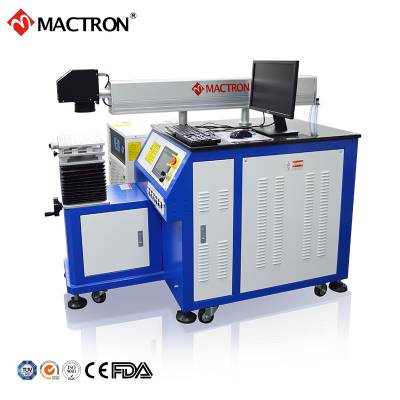

迈创厂家供应钟表***机械通信焊接振镜激光焊接机
l 机器简介Model Introduction
自动化激光焊接机引进德国焊接机技术研制生产，通过配备四维滚珠丝杠工作台和进口伺服控制系统，可完成自动或半自动的点焊、对接焊、叠焊、密封焊，针对复杂的平面直线、圆弧及任意轨迹进行焊接。该款机器操作简单，电流波形可任意调整，焊接精度高、速度快、效果好。
Automatic laser welding machine is developed and produced by German welding machine technology. It can complete automatic or semi-automatic spot welding, butt welding, stack welding and seal welding by equipped with four-dimensional ball screw table and imported servo control system, aiming at complex plane straight line, arc and any track welding. The machine is easy to operate, the current waveform can be adjusted arbitrarily, the welding accuracy is high, the speed is fast and the effect is good.
l 技术参数 Technical Parameter
型号 / Model | MT-W300F/A | MT-W400F/A | MT-W500F/A | MT-W600F/A | |
激光功率 / Laser Power | 300W | 400W | 500W | 600W | |
激光类型 / Laser Type | YAG激光器 | ||||
激光波长 / Wavelength | 1064nm | ||||
单脉冲能量 / Max. Pulse Energy | 90 J - 150 J | ||||
激光焊接深度 / Max. Welding Thickness | 0.1-2.0mm | ||||
整机耗电功率 / Gross Power | ≤13KW | ||||
电力需求 / Voltage | 220V±10% / 50Hz /30A | 380V±10% / 50Hz / 40A | |||
脉冲宽度 / Pulse Width | 0.3-20ms | ||||
激光焊接频率 / Frequency | 1-100Hz | ||||
光斑尺寸可调范围 / Spot Adjustable Range | 0.2-2mm | ||||
瞄准定位 / Positioning | 红灯指示 / Red Indicator | ||||
重复精度 / Repeatability | ±0.01mm | ||||
控制系统 / Control System | PLC or PC（CNC2000 / 数控） | ||||
工作台行程（XYZ） / Working Table (XYZ) | 200mm×200mm×200mm - 500x500x200mm (可选配 / Optional) | ||||
l 适用材料 Applicable Material
可满足多种金属、合金、钢、可伐合金等同种材料的焊接，也可以满足铜一镍、镍一钛、铜一钛、钛一钼、黄铜一铜、低碳钢一铜等异种金属间的焊接。
It can meet the welding of various metals, alloys, steel, kovar alloy and other same materials, and also can meet the welding of copper nickel, nickel titanium, copper titanium, titanium molybdenum, brass copper, low carbon steel copper and other dissimilar metals.
l 应用行业 Applicable Industry
多适用于电子元件、手机电池、首饰、传感器、钟表、***机械、通信、电梯配件、不锈钢门把手、不锈钢酒壶、通信、工艺品、***机柜、***家具等行业。
Suitable for electronic components, mobile phone batteries, jewelry, sensors, watches, precision machinery, communications, elevator accessories, stainless steel door handle, stainless steel wine pot, communications, crafts, high-end cabinets, high-end furniture and other industries.
l 样品展示 Sample Display
